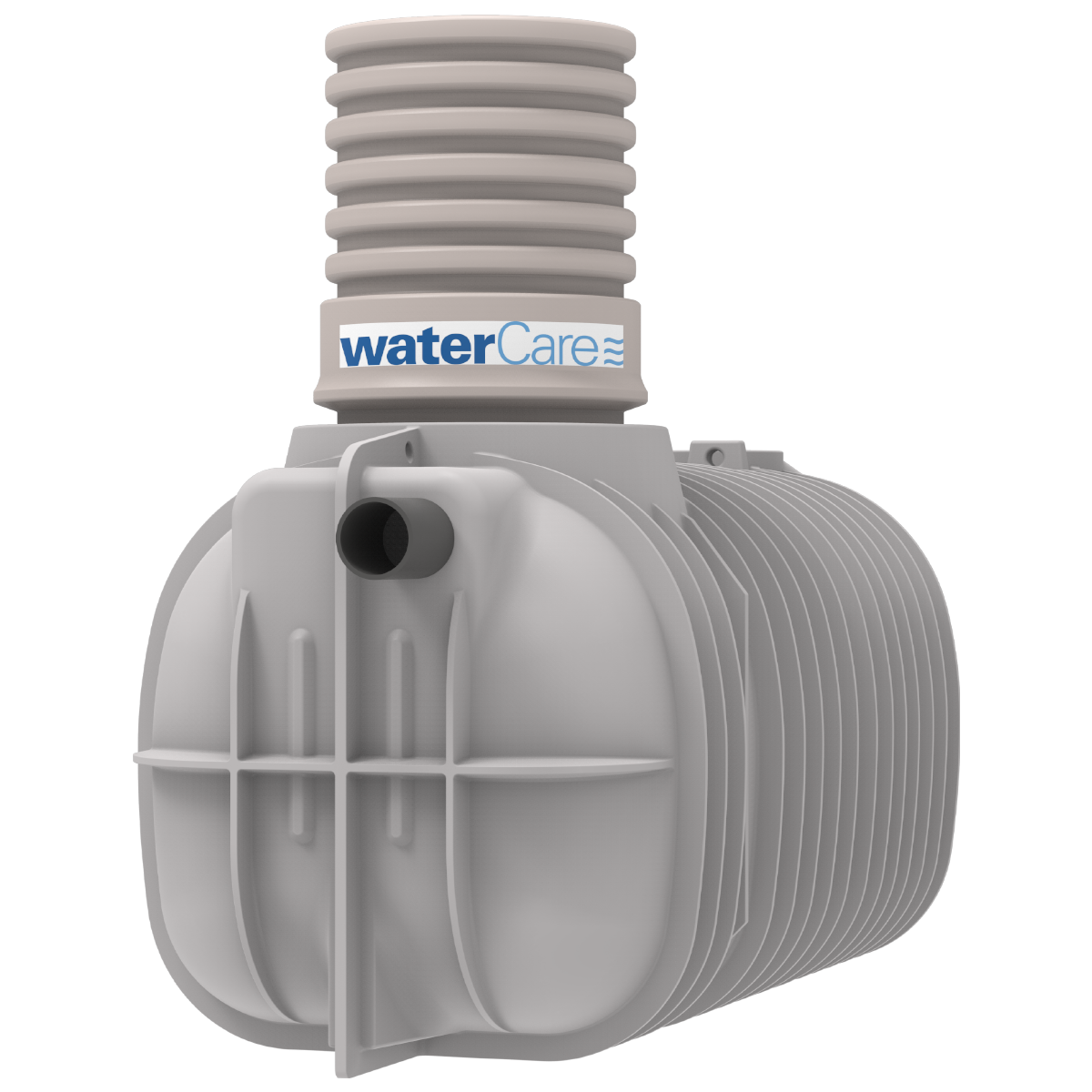

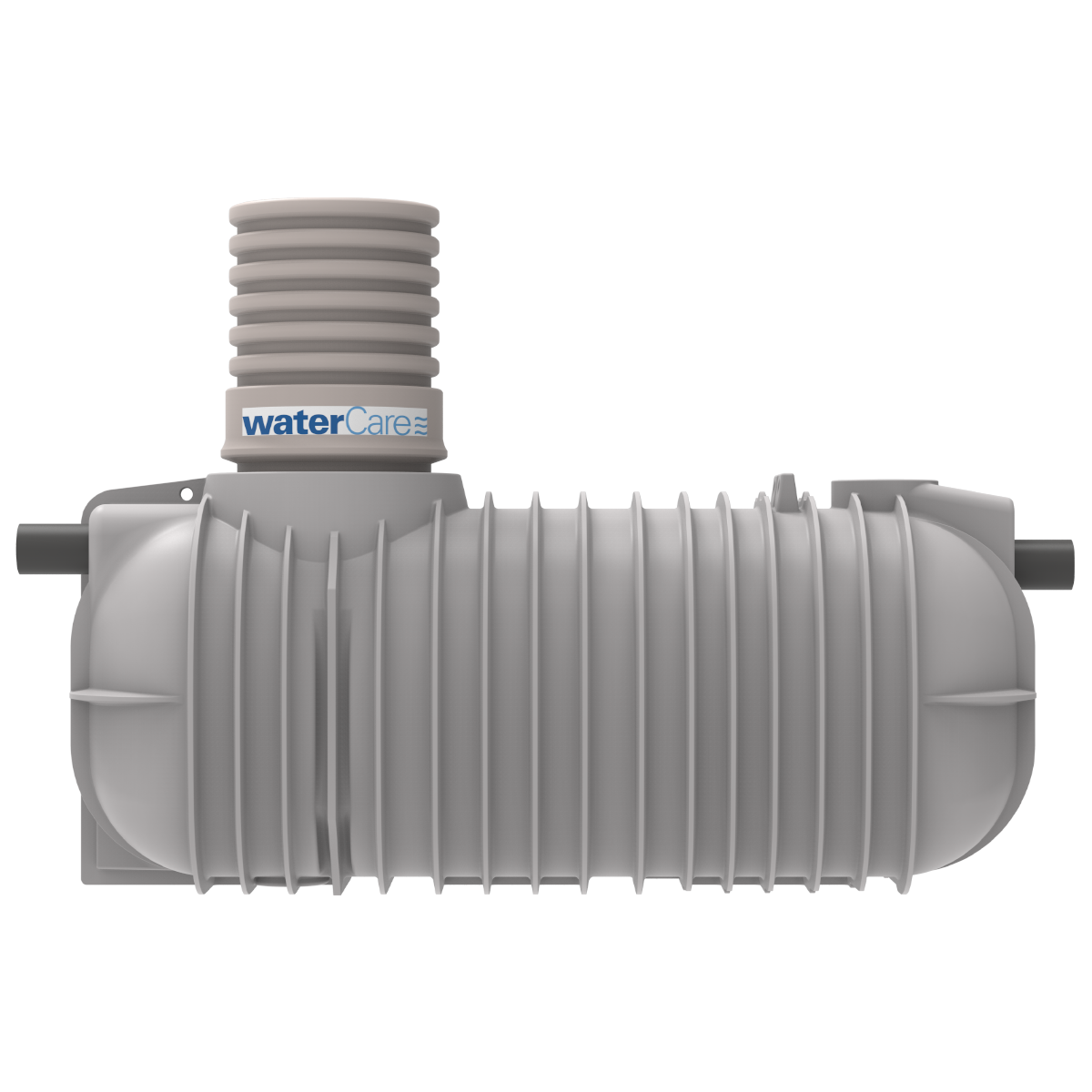

7 L/s grease separator with 0.7 m³ integrated grit chamber - Withstands traffic loads
High-quality grease separators, including models with integrated sand traps, designed for efficient removal of grease and sediment from wastewater. These solutions help prevent buildup in the sewer system, reducing the risk of blockages, improving drainage performance, and ensuring compliance with applicable wastewater regulations.
Choosing the right grease separator protects your plumbing infrastructure, lowers maintenance costs, and supports a more reliable and sustainable wastewater system.
CE marked in accordance with EN 1825-1.
Specifications
SKU:
223381071
Capacity:
7 l/sec
Inlet:
Ø160 mm
Outlet:
Ø160 mm
Inlet height:
990 mm
Outlet height:
940 mm
Width:
1260 mm
Length:
3000 mm
Height incl. riser pipe:
2160 mm (incl. 850 mm riser pipe)
Riser pipe:
Ø600 mm
Max. soil cover (measured from bottom inlet to ground level):
1.5 m
Nominal size (NS):
NS7
Nominal capacity:
2.6 m³
Grease separation capacity:
1.7 m³
Integrated grit chamber capacity:
0.7 m³ (700 ltr.)
Color:
Grey
Material:
PE
Country of manufacture:
DK
